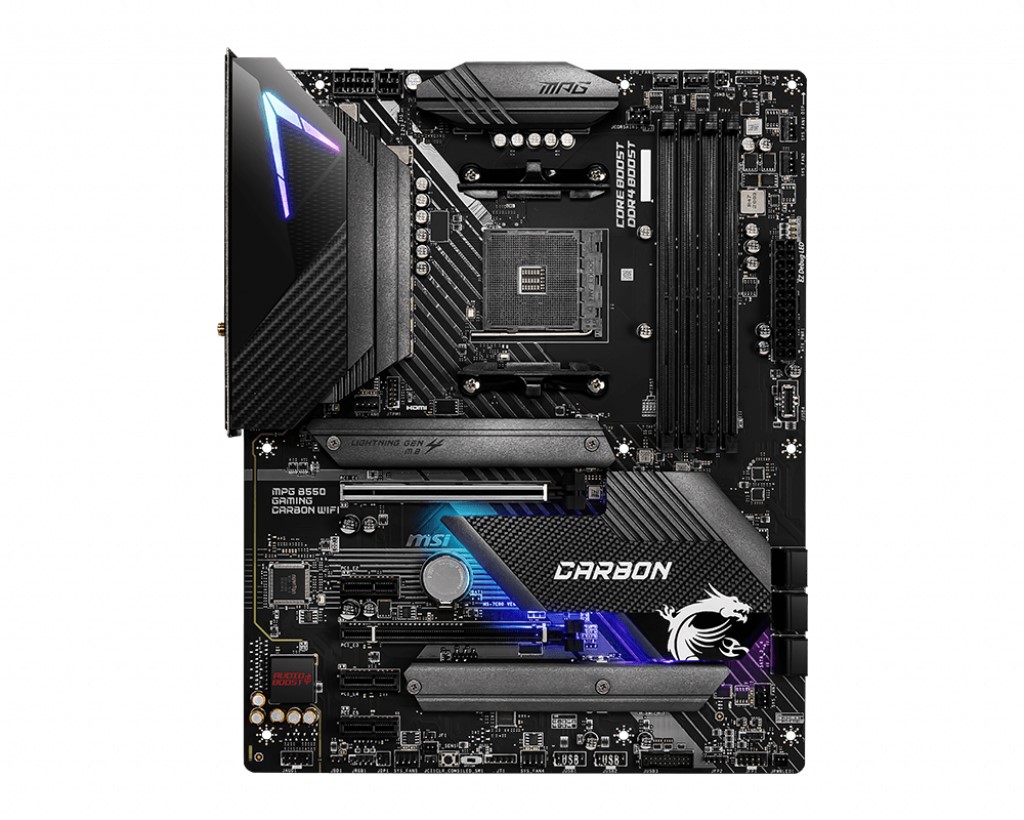

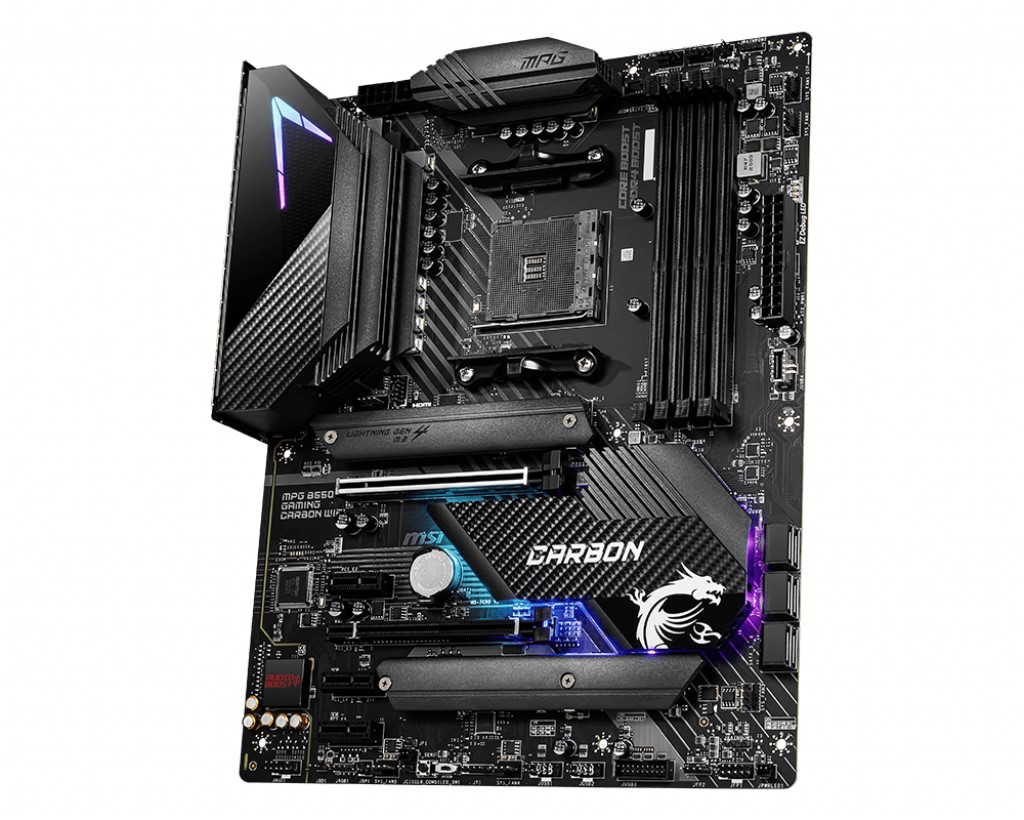

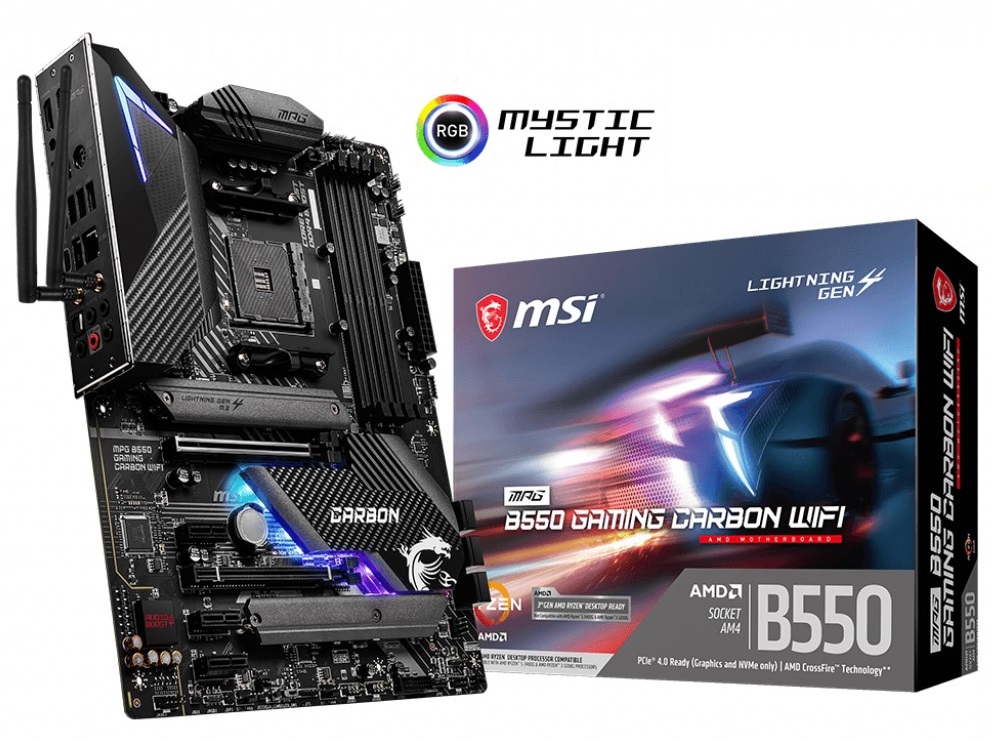

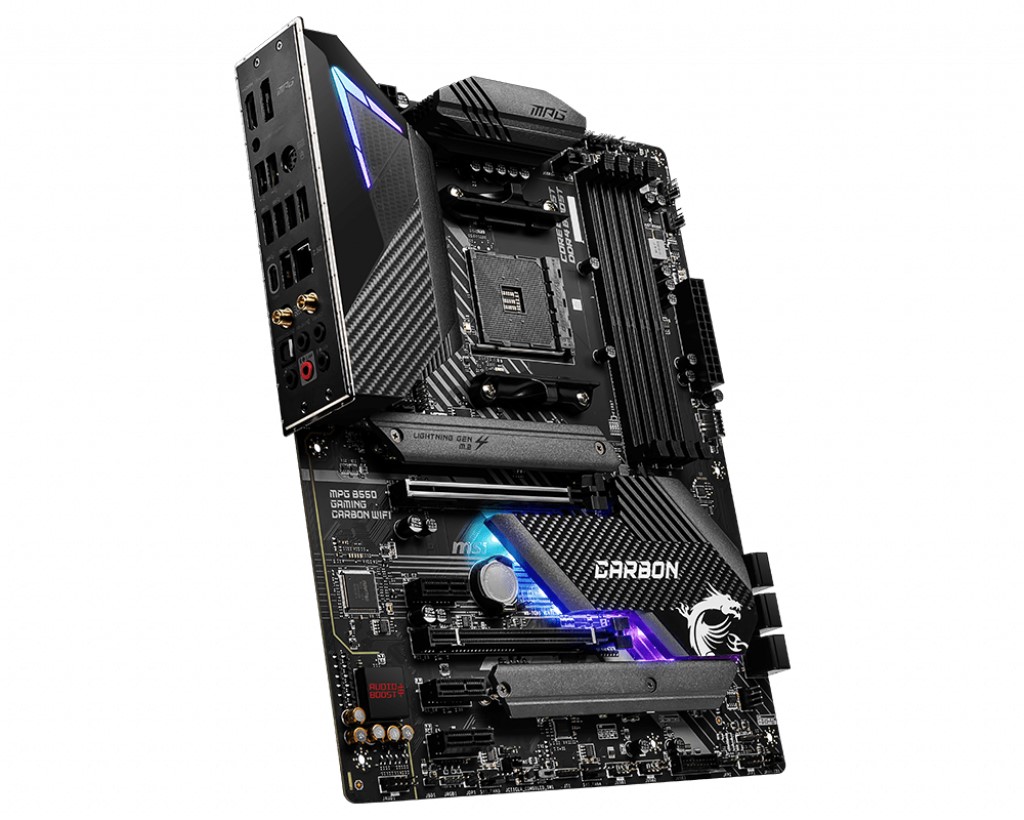

MSI MPG B550 GAMING CARBON WIFI
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD B550 |
İŞLEMCİ DESTEĞİ: |
sADECE AM4 Soket 3.Nesil AMD Ryzen İşlemciler |
BELLEK ÖZELLİKLERİ: |
4x DDR4 memory slots, support up to 128GB 1 |
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE |
1DPC 1R max speed 5100 MHZ |
1DPC 2R max speed 3866 MHZ |
2DPC 1R max speed 4000 MHZ |
2DPC 2R max speed 3600 MHZ |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
Supports ECC UDIMM memory (non-ECC mode) |
Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 |
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 |
3x PCIe 3.0 x1 slots |
The supported specification depends on installed processor. |
When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. |
MULTI GPU: |
Supports 2-Way AMD CrossFire? Technology |
DEPOLAMA: |
AMD B550 Chipset |
6x SATA 6Gb/s ports |
2x M.2 slots (Key M) |
M2_1 slot (from AMD Processor) |
Supports PCIe 4.0/ 3.0 x4 1 |
Supports SATA 6Gb/s |
Supports 2242/ 2260/ 2280/ 22110 storage devices |
M2_2 slot (from AMD B550 chipset) |
Supports PCIe 3.0x4 |
Supports 2242/ 2260/ 2280 storage devices |
The supported specification depends on installed processor. |
RAID: |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
SES: |
Realtek ALC1200 Codec |
7.1-Channel High Definition Audio |
Supports S/PDIF output |
LAN: |
1x Realtek RTL8125B 2.5Gbps LAN controller |
WIRELESS: |
Intel Wi-Fi 6 AX200 |
The Wireless module is pre-installed in the M.2 (Key-E) slot |
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps |
Supports 802.11 a/ b/ g/ n/ ac/ ax |
Supports Bluetooth® 5.1 |
BOYUTLAR: |
ATX Form Factor |
12 in. x 9.6 in. (30.4 cm x 24.4 cm |
Garanti: 36 Ay |
