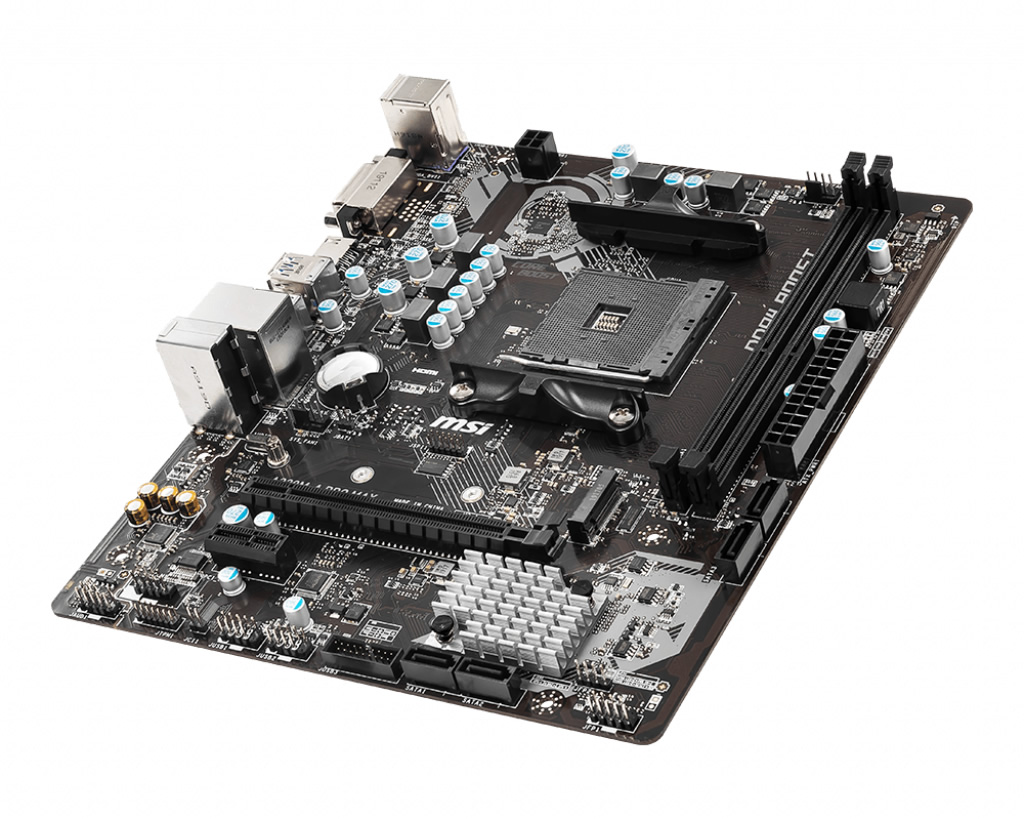

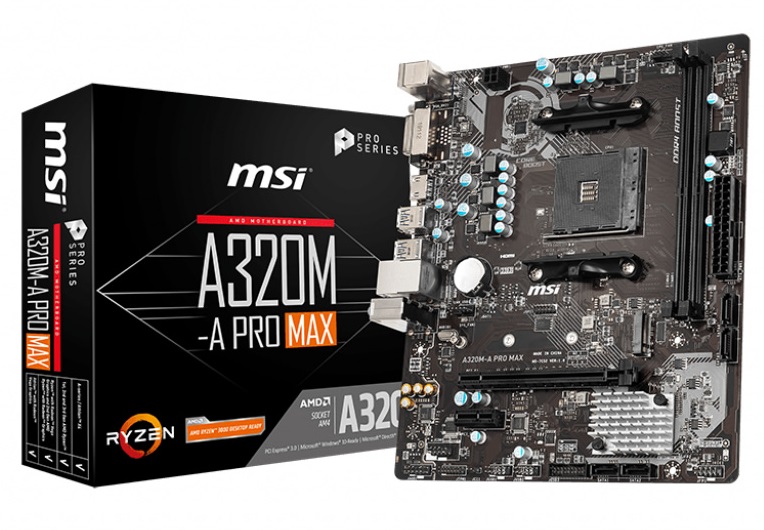

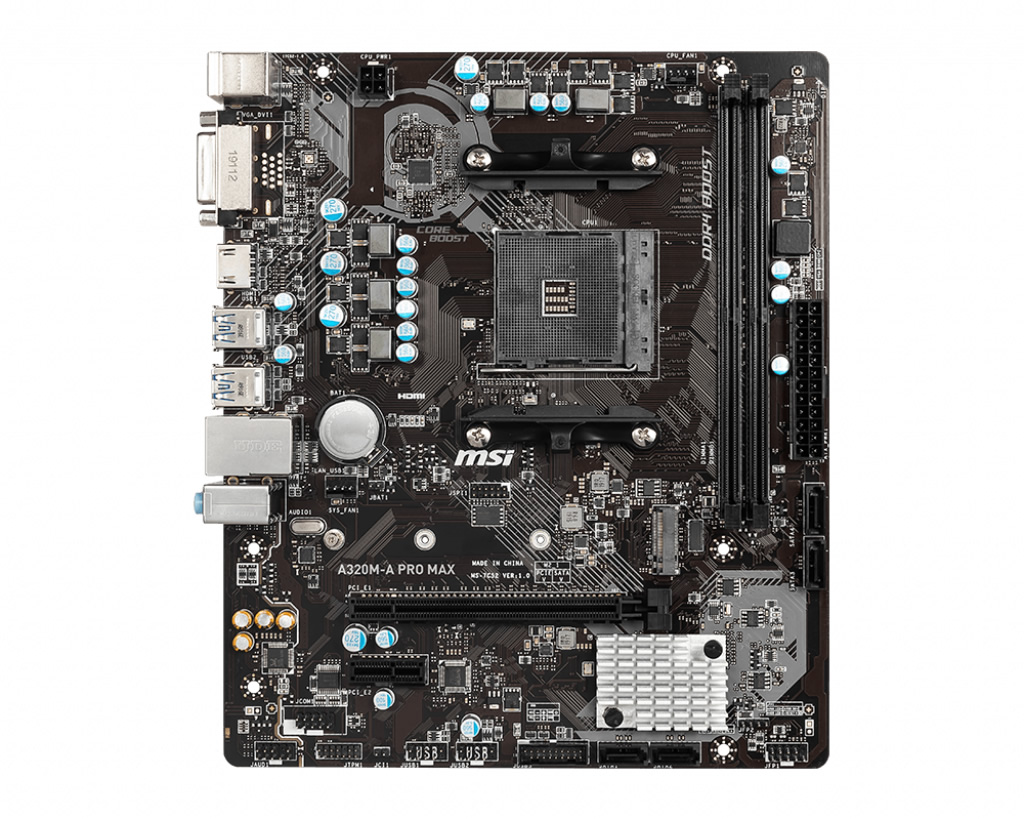

MSI A320M-A PRO
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD 320 |
İŞLEMCİ DESTEĞİ: |
Supports 1st, 2nd and 3rd Gen AMD Ryzen? / Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics / Athlon? with Radeon? Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
BELLEK ÖZELLİKLERİ: |
2 x DDR4 memory slots, support up to 32GB1 |
Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
Supports ECC UDIMM memory (non-ECC mode) |
GENİŞLETME SLOTLARI: |
1 x PCIe 3.0 x16 slot |
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen? processorss |
Supports x8 speed with Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics processors |
Supports x4 speed with AMD® Athlon? with Radeon? Vega Graphics Processors |
1 x PCIe 2.0 x1 slots |
ONBOARD GRAFİK: |
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 |
1 x HDMI? port 1.4, supports a maximum resolution of 4096x2160@30Hz1,2 |
Only support when using AMD® Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics/ Athlon? with Radeon? Vega Graphics Processors |
Maximum shared memory of 2048 MB |
MULTI GPU: |
- Yok |
DEPOLAMA: |
AMD A320 Chipset |
4 x SATA 6Gb/s ports |
Supports RAID 0, RAID 1 and RAID 10 |
SES: |
Realtek ALC892 Codec |
7.1-Channel High Definition Audio |
LAN: |
1 x Realtek® 8111H Gigabit LAN controller |
ARKA PANEL ÇIKIŞLARI: |
Mouse |
DVI-D Port |
USB 3.2 Gen1 |
LAN Port |
Keyboard |
HDMI Port |
USB 2.0 Ports |
HD Audio Connectors |
Form Factor: |
22.6 cm x 18.7 cm |
m-ATX Form Factor |
Garanti: 36 Ay |
