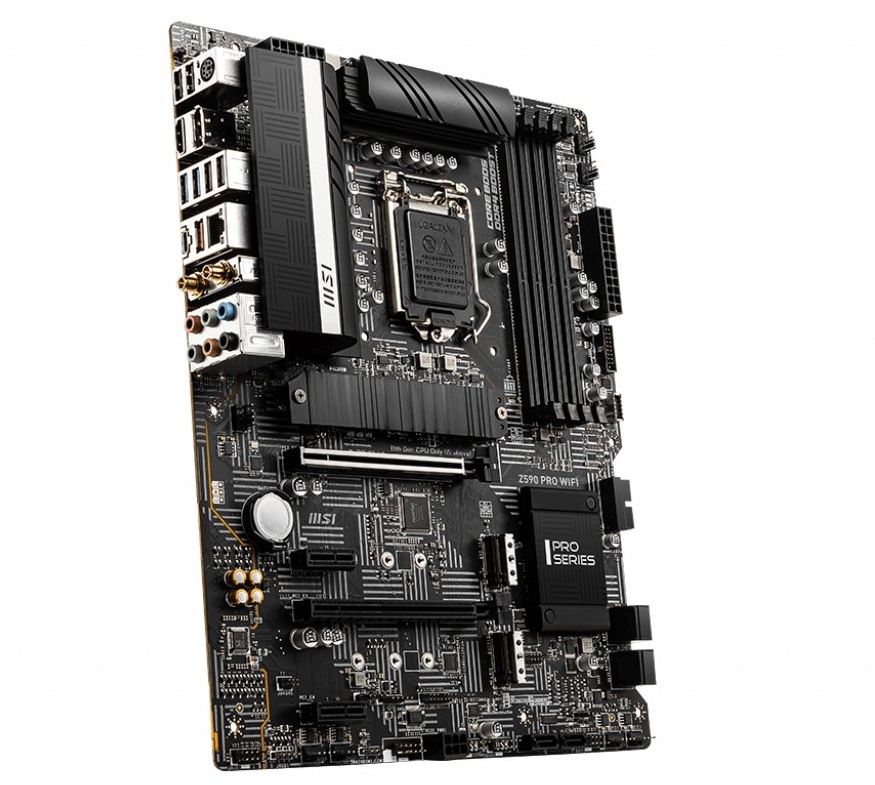

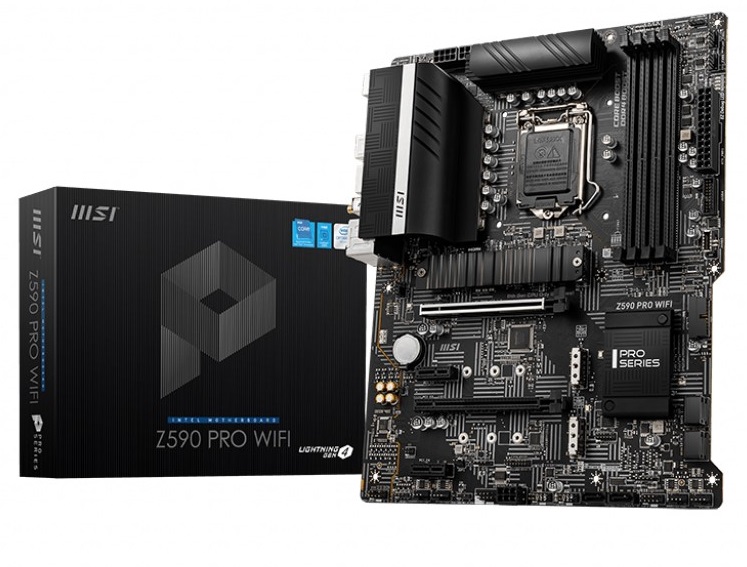

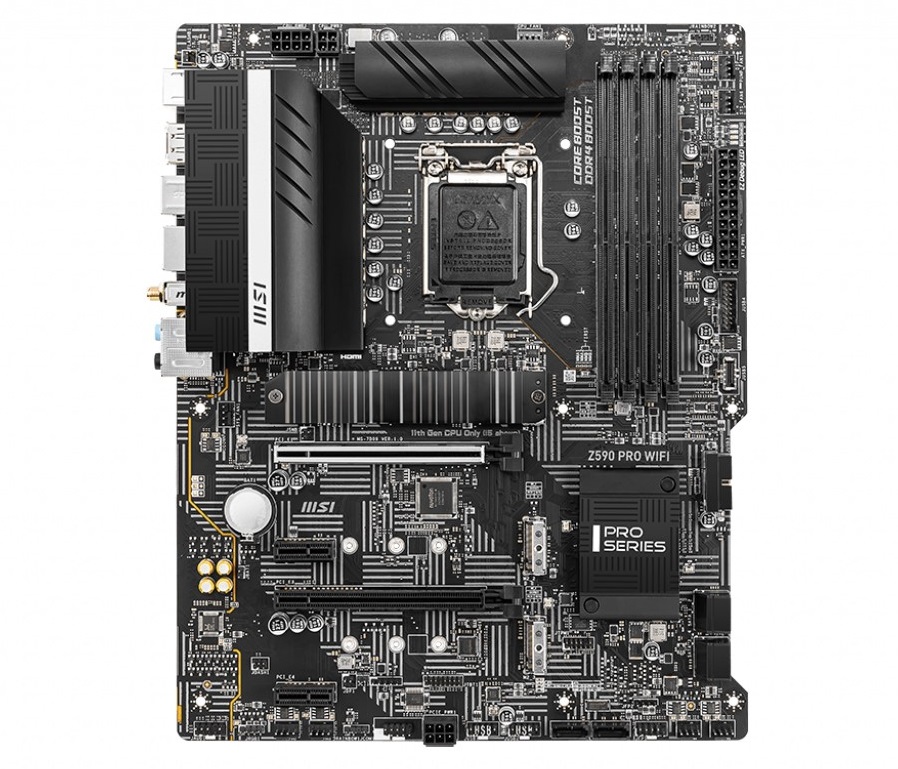

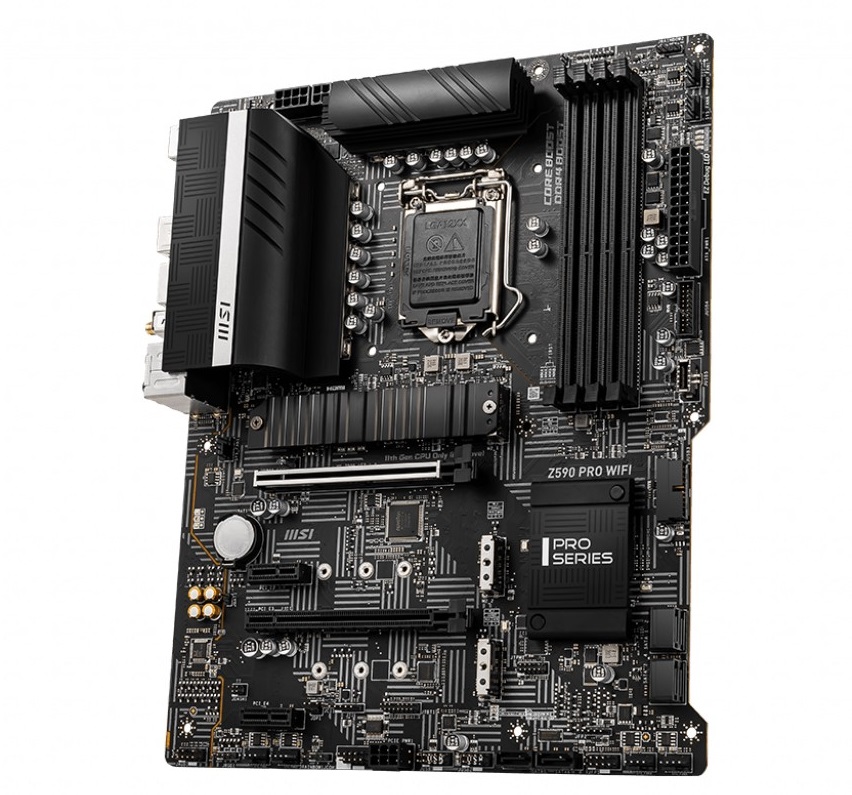

MSI Z590 PRO WIFI
Socket Türü: LGA 1200 | ||||||||
Vga Türü: PCIExp | ||||||||
Ram Türü: DDR4 | ||||||||
Çipset: INTEL Z590 | ||||||||
BELLEK: | ||||||||
4x DDR4 memory slots, support up to 128GB 1 | ||||||||
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1 | ||||||||
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) | ||||||||
Max overclocking frequency: | ||||||||
1DPC 1R Max speed up to 5333 MHz | ||||||||
1DPC 2R Max speed up to 4700+ MHz | ||||||||
2DPC 1R Max speed up to 4400+ MHz | ||||||||
2DPC 2R Max speed up to 4000+ MHz | ||||||||
Supports Dual-Channel mode | ||||||||
Supports non-ECC, un-buffered memory | ||||||||
Supports Intel® Extreme Memory Profile (XMP) | ||||||||
ÇOKLU EKRAN KARTI DESTEĞi: | ||||||||
2-Way AMD® CrossFire? Technology | ||||||||
GENİŞLETME SLOTLARI: | ||||||||
2x PCIe x16 slots | ||||||||
Support x16/ x4 | ||||||||
PCI_E1 (from CPU) | ||||||||
Supports up to PCIe 4.0 for 11th Gen Intel® CPU | ||||||||
Supports up to PCIe 3.0 for 10th Gen Intel® CPU | ||||||||
PCI_E3 (from Z590 chipset) | ||||||||
Supports up to PCIe 3.0 | ||||||||
2x PCIe 3.0 x1 slots (from Z590 chipset) | ||||||||
DEPOLAMA: | ||||||||
6x SATA 6Gb/s ports (from Z590 chipset) | ||||||||
3x M.2 slots (Key M) | ||||||||
M2_1 slot (from CPU) 1 | ||||||||
Available only on 11th Gen Intel® CPU | ||||||||
Supports up to PCIe 4.0x4 | ||||||||
Supports 2242/ 2260/ 2280/ 22110 storage devices | ||||||||
M2_21, M2_32 slots (from Z590 chipset) | ||||||||
Support up to PCIe 3.0x4 | ||||||||
Support up to SATA 6Gb/s | ||||||||
Support 2242/ 2260/ 2280 storage devices | ||||||||
Intel® Optane? Memory Ready 3 | ||||||||
Support Intel® Smart Response Technology for Intel Core? processors | ||||||||
LAN: | ||||||||
1x Intel® I225-V 2.5Gbps LAN controller | ||||||||
WIFI: | ||||||||
Yok | ||||||||
SES:
Realtek ALC897 Codec |
7.1-Channel High Definition Audio |
|
BOYUTLAR: |
ATX Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
Garanti: 36 Ay MSI Yetkili Servisinde | |
