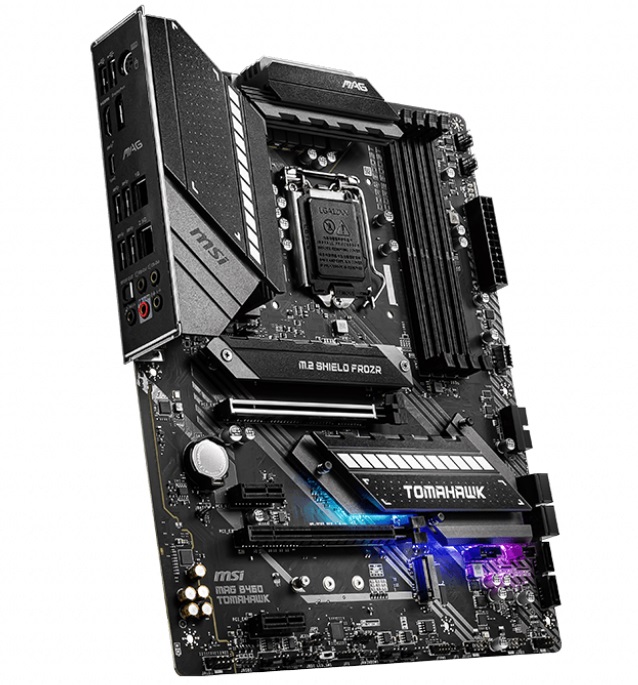

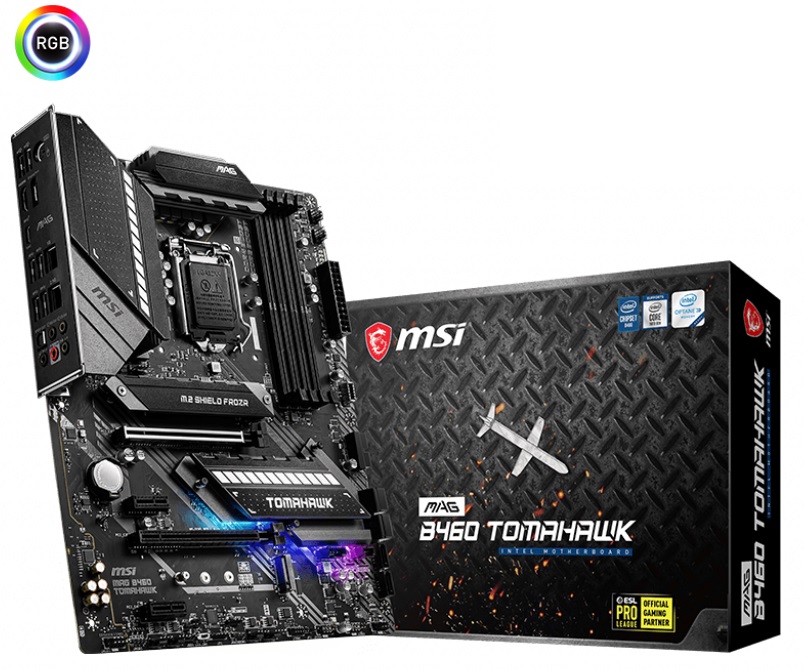

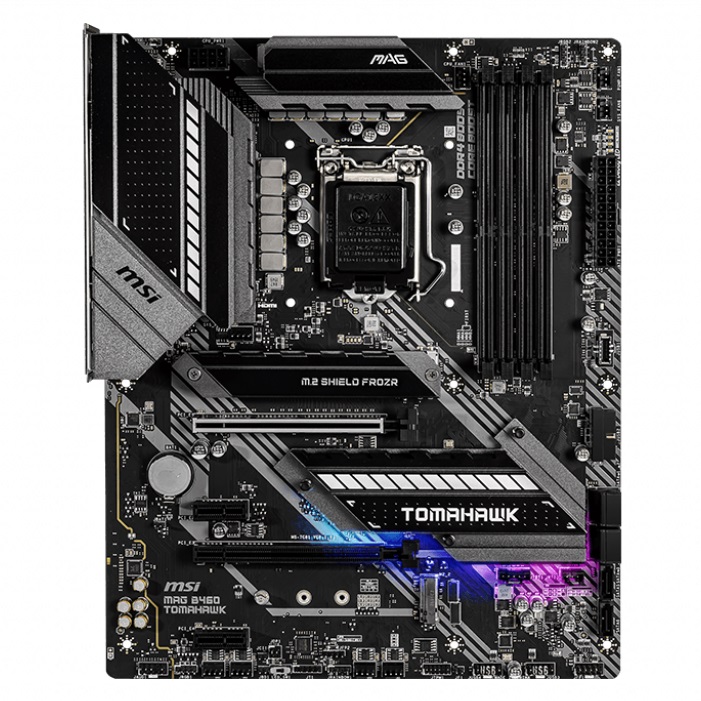

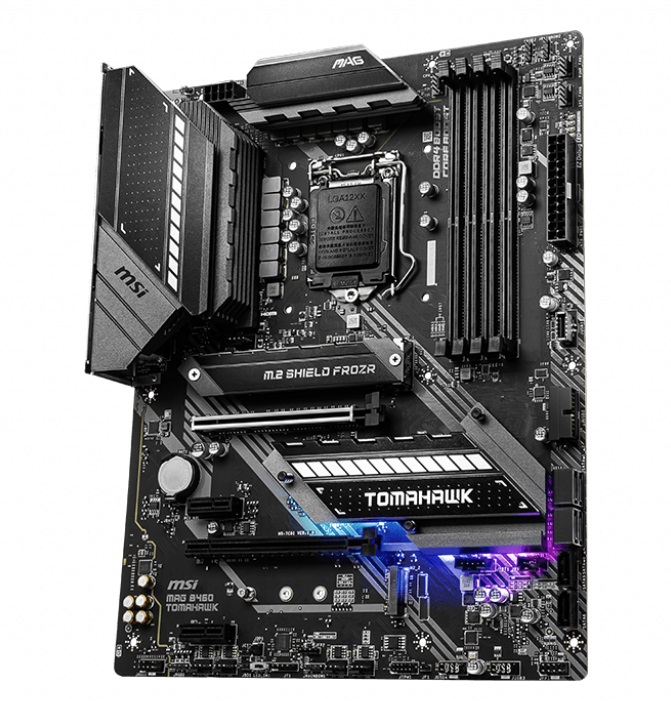

MSI MAG B460 TOMAHAWK, B460, DDR4, Socket 1200 ATX Anakart

MSI MAG B460 TOMAHAWK





Stok Durumu : Stokta Yok (Stokta Yok)


Ürün Detayı
Model: MAG B460 TOMAHAWK
Socket Türü: LGA 1200
Vga Türü: PCIExp
Ram Türü: DDR4
Çipset: INTEL B460
BELLEK:
4x DDR4 memory slots, support up to 128GB 1
Intel® Core? i7/i9
Supports up to DDR4 2933 MHz
Intel® Core? i5 (Below)
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
GRAFİK:
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
GENİŞLETME SLOTLARI:
1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 1
2x PCIe 3.0 x1 slots (From PCH)
DEPOLAMA:
Intel B460 Chipset
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 2
Intel® Optane? Memory Ready 3
Supports Intel® Smart Response Technology for Intel Core? processors
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
Before using Intel® Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
LAN:
1x Realtek RTL8125B 2.5Gbps LAN controller
1x Intel I219V 1Gbps LAN controller
SES:
Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF outpu
USB:
Intel B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia ASM3241 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
BOYUTLAR:
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Garanti: 36 Ay Asus Yetkili Servisinde
