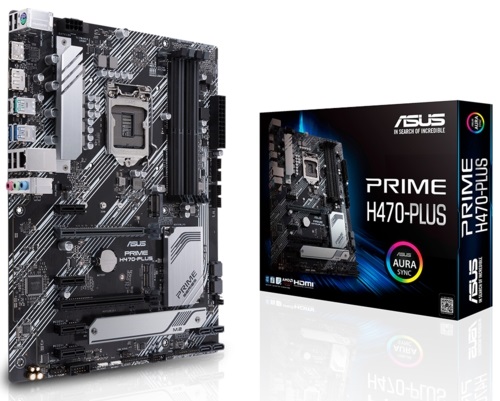

ASUS PRIME H470-PLUS
Socket Türü: LGA 1200 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: INTEL H470 |
BELLEK: |
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
Dual Channel Memory Architecture |
Supports Intel® Extreme Memory Profile (XMP) |
OptiMem |
* 10th Gen Intel® Core?i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
GRAFİK: |
Integrated Graphics Processor |
1 x DisplayPort 1.4 ** |
1 x HDMI 1.4b |
*Graphics specifications may vary between CPU types. |
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
GENİŞLETME SLOTLARI: |
Intel® 10th Gen Processors |
1 x PCIe 3.0 x16 (x16 mode) |
Intel® H470 Chipset |
1 x PCIe 3.0 x16 (x4 mode) |
4 x PCIe 3.0 x1 |
DEPOLAMA: |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
Intel® H470 Chipset : |
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1 |
6 x SATA 6Gb/s port(s) |
Support Raid 0, 1, 5, 10 |
Intel® Rapid Storage Technology supports |
Intel® Optane? Memory Ready |
LAN: |
Realtek® RTL8111H |
SES: |
Realtek® ALC887 8-Channel High Definition Audio CODEC * |
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
USB: |
Rear USB Port ( Total 8 ) |
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C) |
2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
4 x USB 2.0 port(s)(4 x Type-A) |
Front USB Port ( Total 7 ) |
4 x USB 3.2 Gen 1 port(s) |
3 x USB 2.0 port(s) |
ARKA PANEL: |
1 x PS/2 keyboard/mouse combo port(s) |
1 x DisplayPort |
1 x HDMI |
1 x LAN (RJ45) port(s) |
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) |
2 x USB 3.2 Gen 1 Type-A |
4 x USB 2.0 *2 |
3 x Audio jack(s) |
BOYUTLAR: |
ATX Form Factor |
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
Garanti: 36 Ay Asus Yetkili Servisinde |
