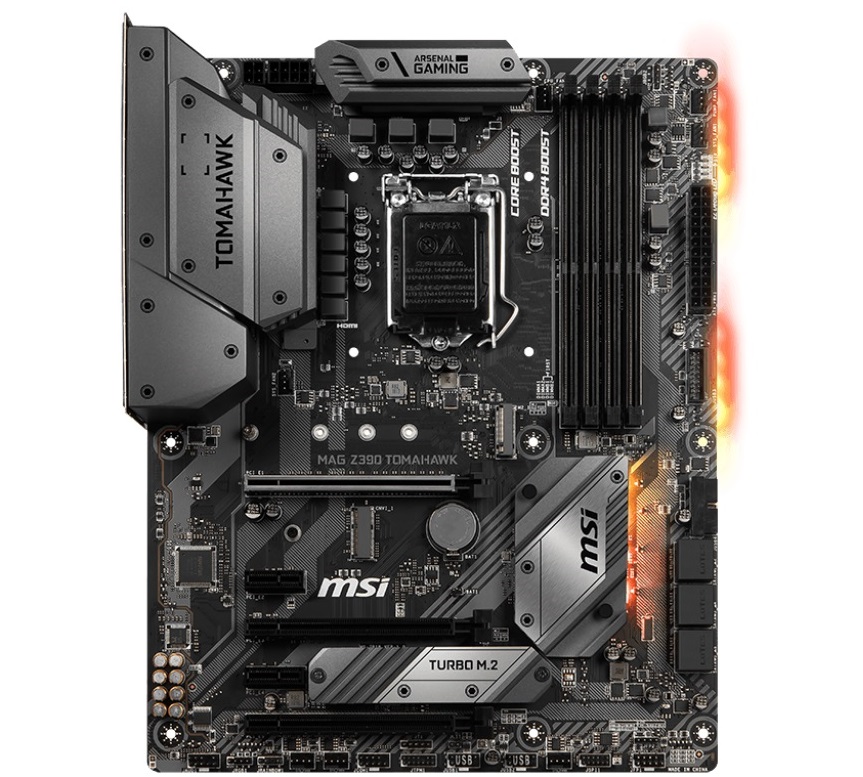

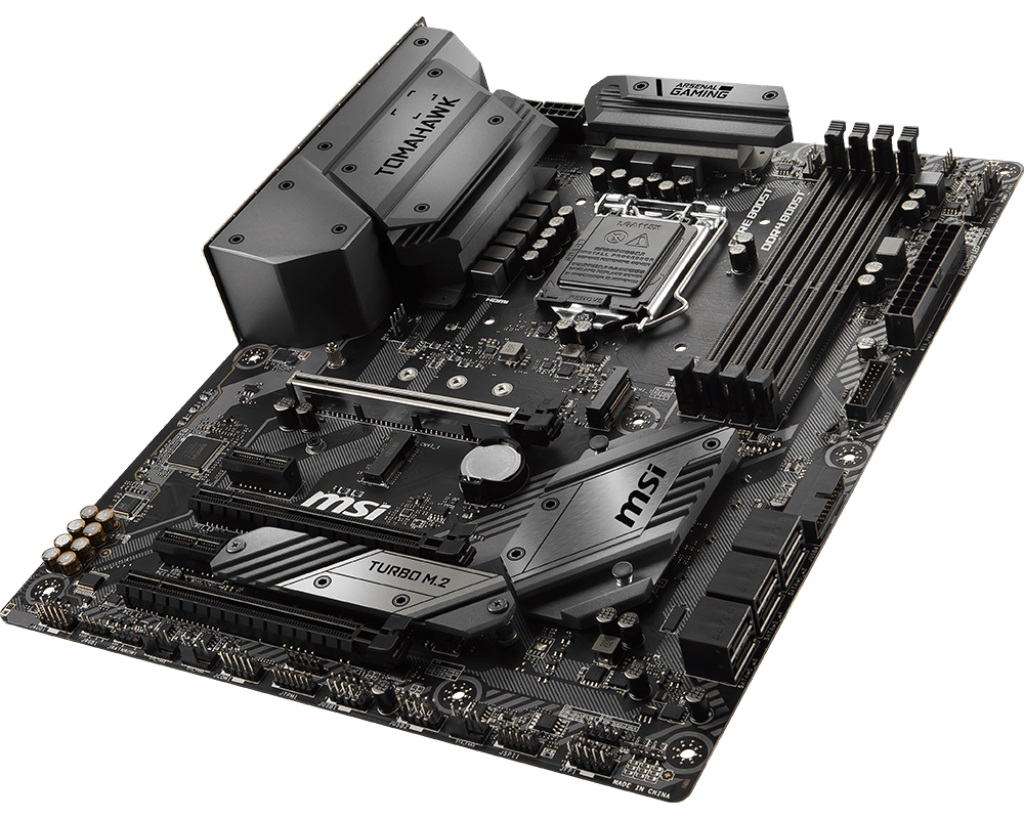

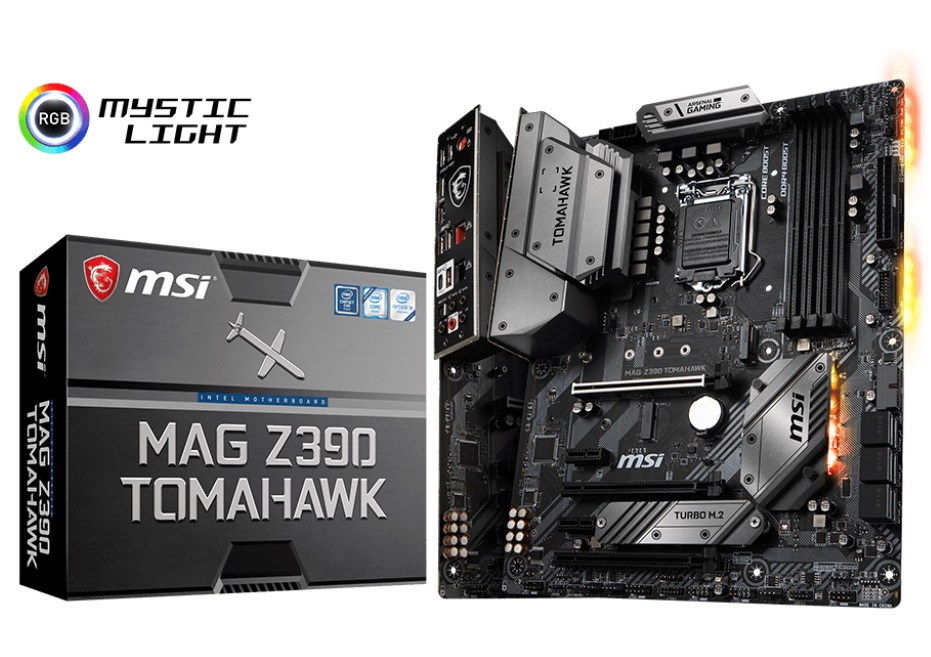

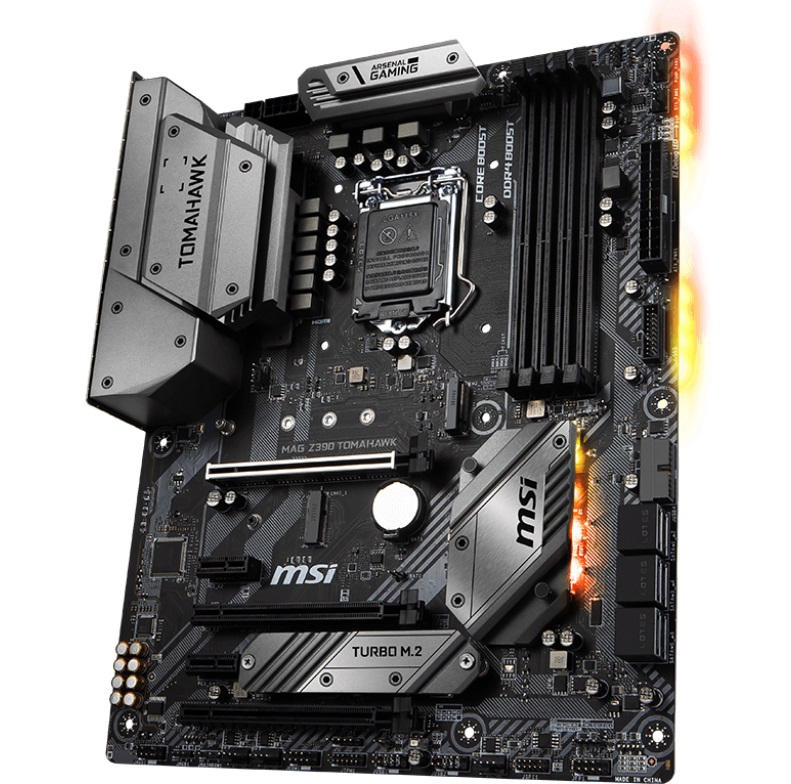

MSI MAG Z390 TOMAHAWK
Vga Türü: PCIExp | |||||||||||||||
Ram Türü: DDR4 | |||||||||||||||
Çipset: INTEL Z390 | |||||||||||||||
BELLEK: | |||||||||||||||
4 x DDR4 memory slots, support up to 64GB | |||||||||||||||
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz* | |||||||||||||||
Supports Dual-Channel mode | |||||||||||||||
Supports non-ECC, un-buffered memory | |||||||||||||||
Supports Intel® Extreme Memory Profile (XMP) | |||||||||||||||
GRAFİK: | |||||||||||||||
1 x HDMI? port 1.4, supports a maximum resolution of 4096x2160@24Hz | |||||||||||||||
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz | |||||||||||||||
ÇOKLU EKRAN KARTI DESTEĞi: | |||||||||||||||
Supports 2-Way AMD® CrossFire? Technology | |||||||||||||||
GENİŞLETME SLOTLARI: | |||||||||||||||
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes) | |||||||||||||||
2 x PCIe 3.0 x1 slots | |||||||||||||||
1 x M.2 slot (Key E) for an Intel® CNVi wireless module only | |||||||||||||||
DEPOLAMA: | |||||||||||||||
Intel Z390 Chipset | |||||||||||||||
6x SATA 6Gb/s ports*1 | |||||||||||||||
2x M.2 slots (Key M)*1 | |||||||||||||||
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices | |||||||||||||||
M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices | |||||||||||||||
Intel® Optane? Memory Ready | |||||||||||||||
M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details. | |||||||||||||||
Before using Intel® Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |||||||||||||||
LAN: | |||||||||||||||
1 x Intel® I219-V Gigabit LAN controller | |||||||||||||||
1 x Intel® I211-AT Gigabit LAN controller | |||||||||||||||
SES:
Realtek® ALC892 Codec |
7.1-Channel High Definition Audio |
Supports S/PDIF output |
|
USB: |
Intel Z390 Chipset |
4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel) |
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors |
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
|
BOYUTLAR: |
9.6 in. x 12 in. (24.3 cm x 30.4 cm) |
ATX Form Factor |
|
Garanti: 36 Ay MSI Yetkili Servisinde | |
