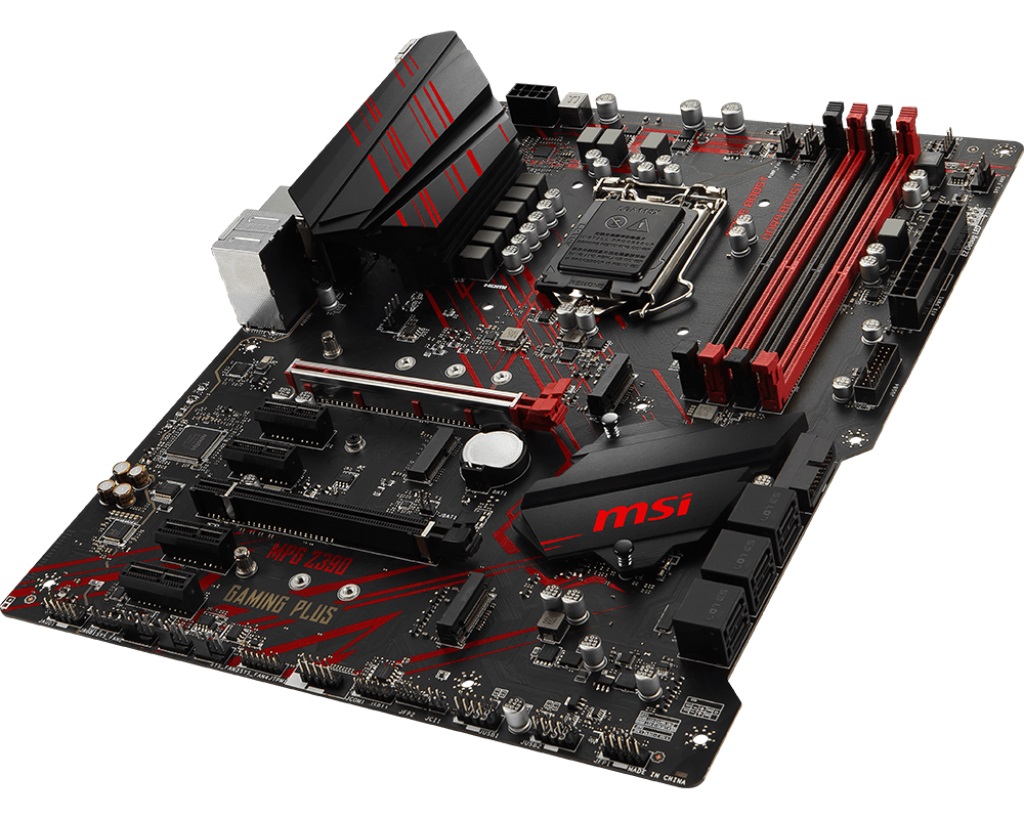

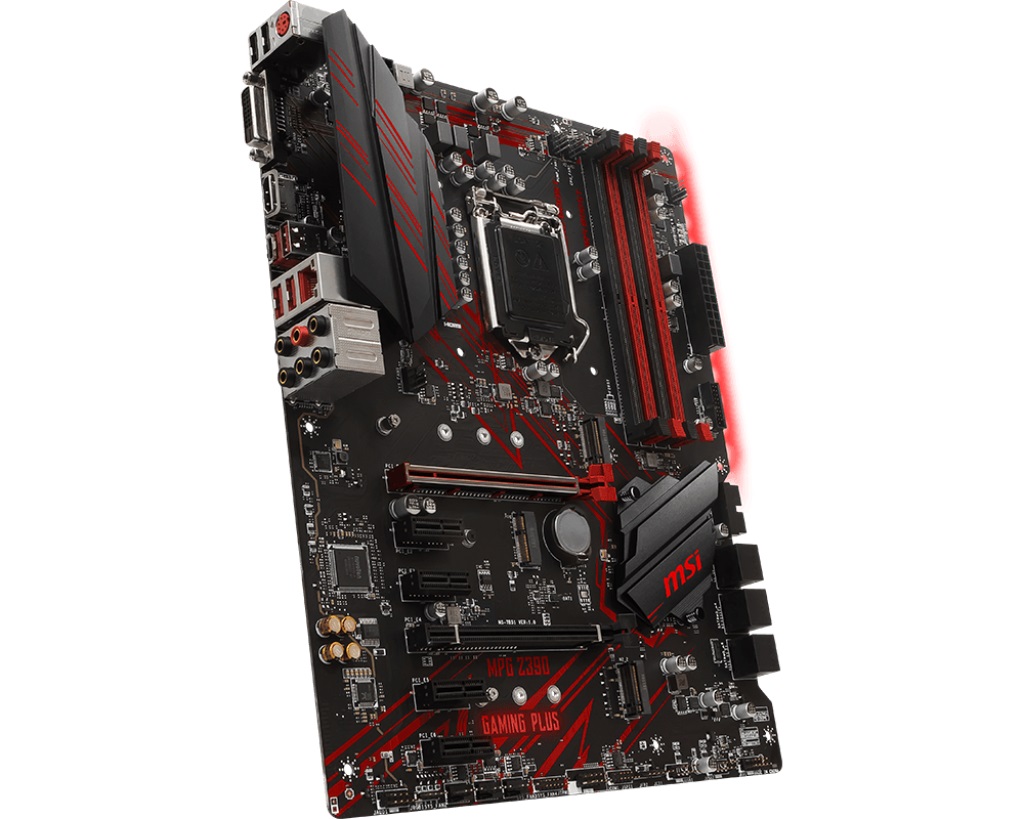

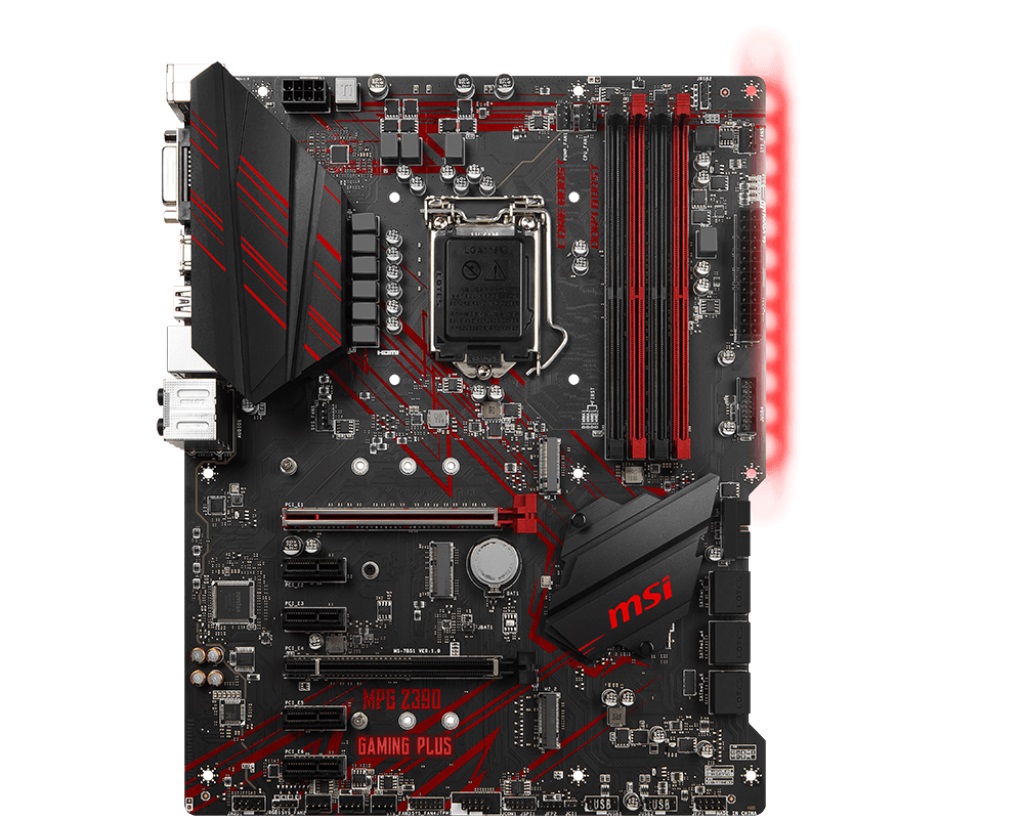

MSI MPG Z390 GAMING PLUS, Z390, DDR4, Socket 1151 ATX Anakart

MSI MPG Z390 GAMING PLUS





Stok Durumu : Stokta Yok (Stokta Yok)


Ürün Detayı
Socket Türü: LGA 1151
Vga Türü: PCIExp
Ram Türü: DDR4
Çipset: INTEL Z390
BELLEK:
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
GRAFİK:
1 x HDMI? port, supports a maximum resolution of 4096x2160@24Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
ÇOKLU EKRAN KARTI DESTEĞi:
Supports 2-Way AMD CrossFire? Technology
GENİŞLETME SLOTLARI:
2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
DEPOLAMA:
Intel® Z390 Chipset
6 x SATA 6Gb/s ports1
2 x M.2 slot (Key M)1
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane? Memory Ready2
M.2 slots and SATA ports share the bandwidth. Please refer user manual for details.
Before using Intel® Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
LAN:
1 x Intel® I219-V Gigabit LAN controller
SES:
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
USB:
Intel® Z390 Chipset
2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)1
The CNVI_1 and JUSB2 share the same bandwidth. Please refer user manual for details.
BOYUTLAR:
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
Garanti: 36 Ay MSI Yetkili Servisinde
