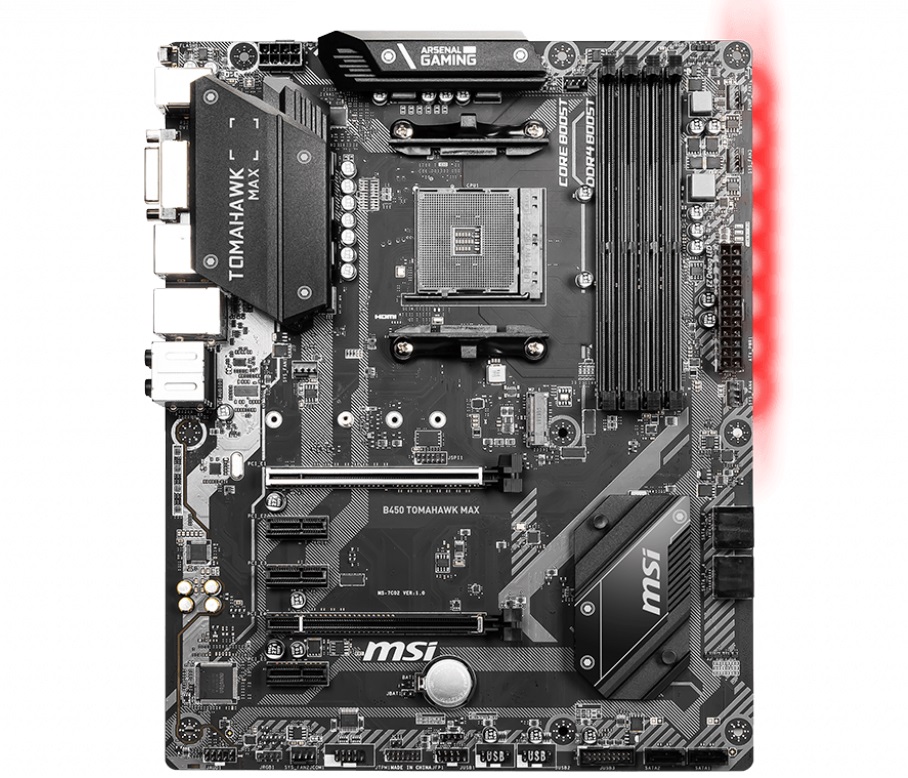

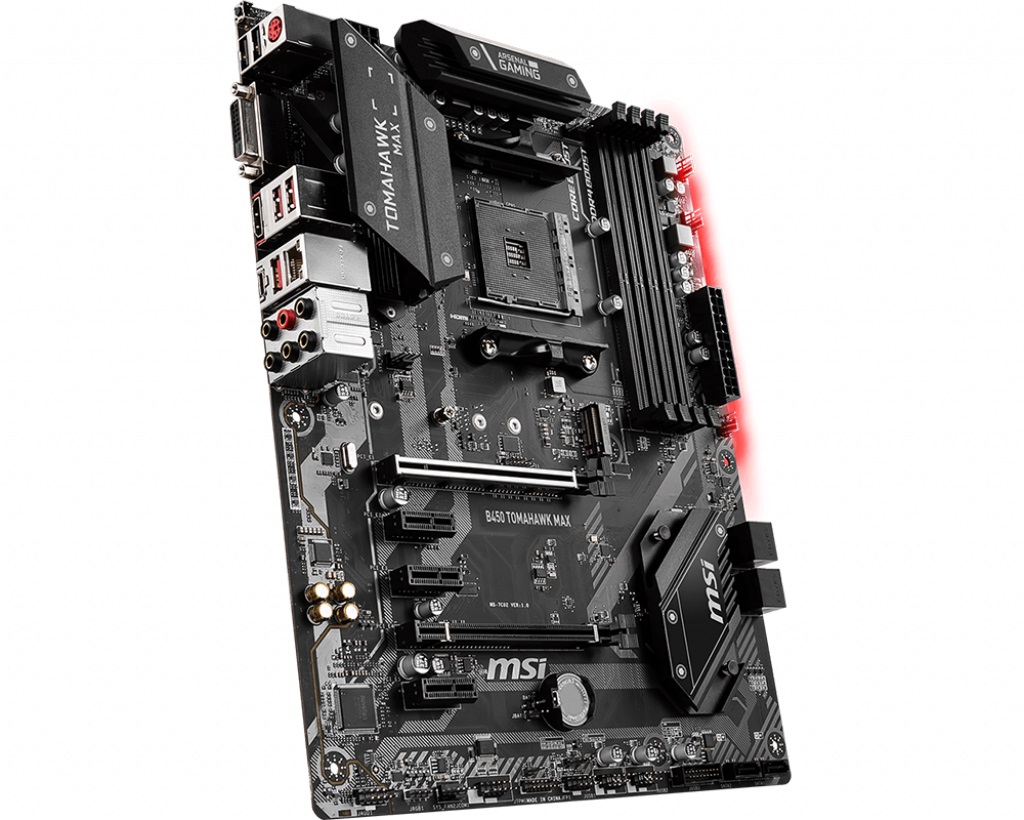

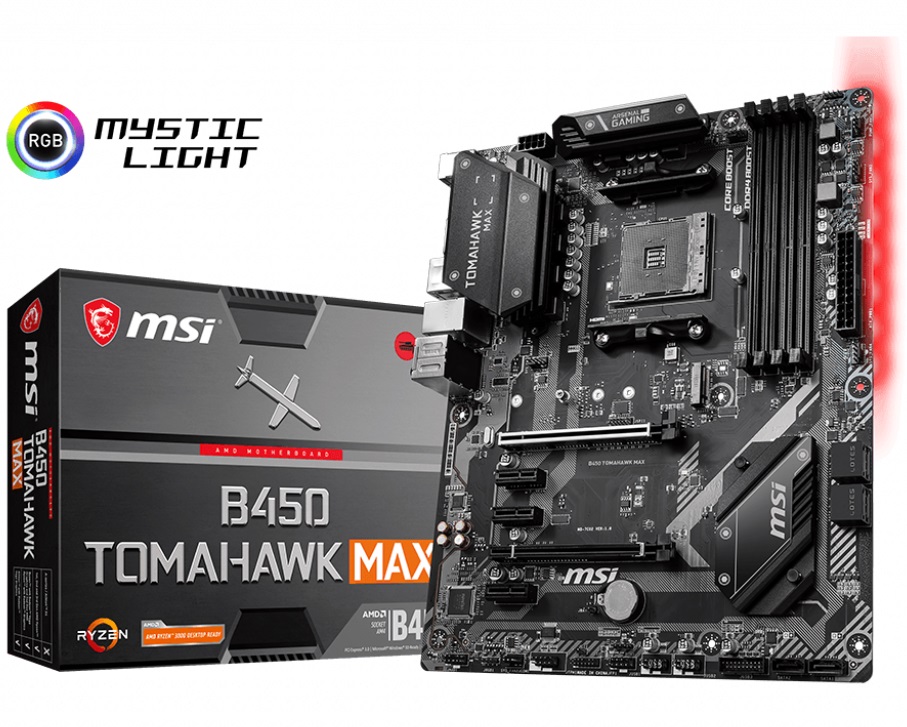

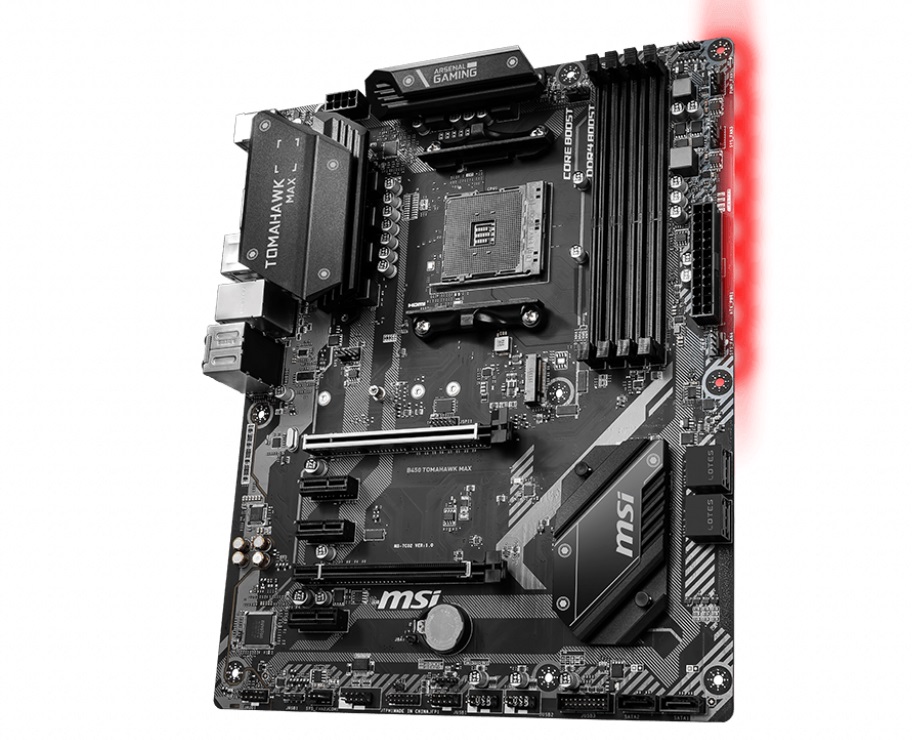

MSI B450 TOMAHAWK MAX II, AMD B450, DDR4, AM4 Ryzen ATX Anakart

MSI B450 TOMAHAWK MAX II





Stok Durumu : Stokta Yok (Stokta Yok)


Ürün Detayı
Socket Türü: Socket AM4
Vga Türü: PCIExp
Ram Türü: DDR4
Çipset: AMD B450
İŞLEMCİ DESTEĞİ:
1., 2. ve 3. nesil AMD Ryzen Socket AM4
BELLEK ÖZELLİKLERİ:
4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
GENİŞLETME SLOTLARI:
1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen? processors support x16 speed
Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics processors support x8 speed
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
3 x PCIe 2.0 x1 slots1
PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.
ONBOARD GRAFİK:
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2
1 x HDMI? 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2
Only support when using Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics/ Athlon? with Radeon? Vega Graphics processors
Maximum shared memory of 2048 MB
MULTI GPU:
2-Way AMD CrossFire Technology
DEPOLAMA:
AMD CPU
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen?/ Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics) or PCIe 3.0 x2 (Athlon? with Radeon? Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
AMD B450
4 x SATA 6Gb/s ports
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
SES:
Realtek ALC892 Codec
7.1-Channel High Definition Audio
Form Factor:
30.5 cm x 24.4 cm
ATX Form Factor
Garanti: 36 Ay
