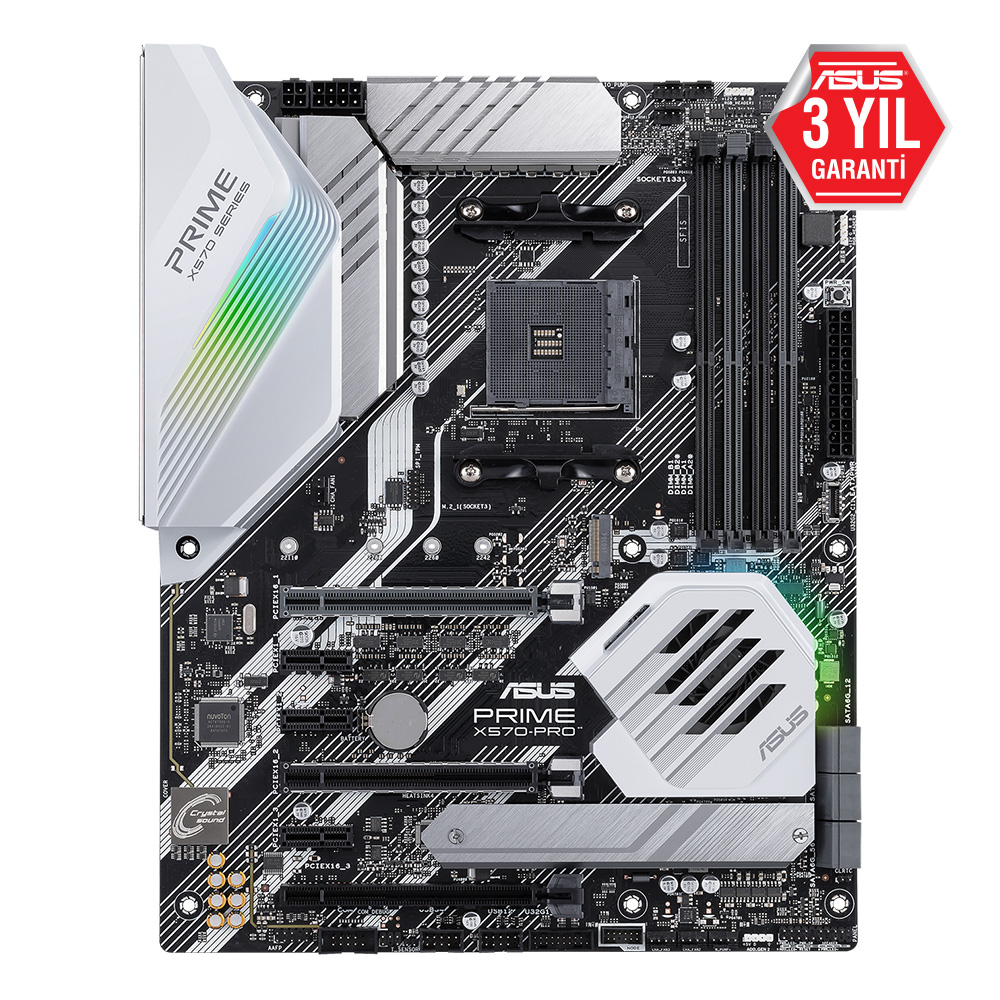

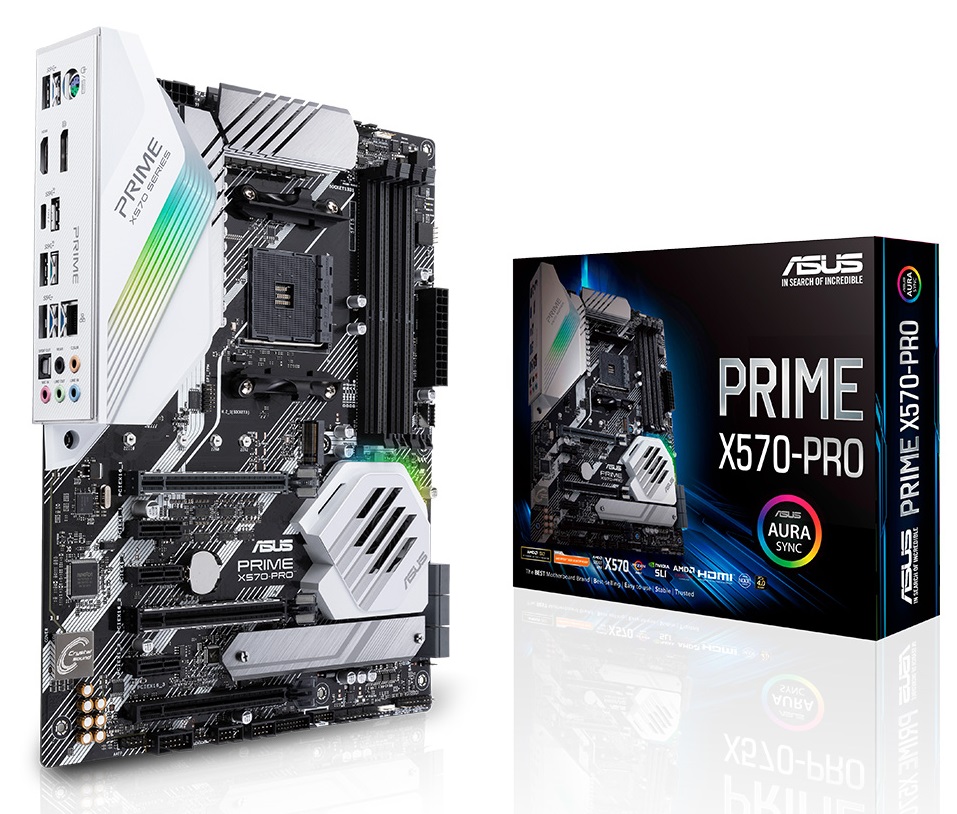

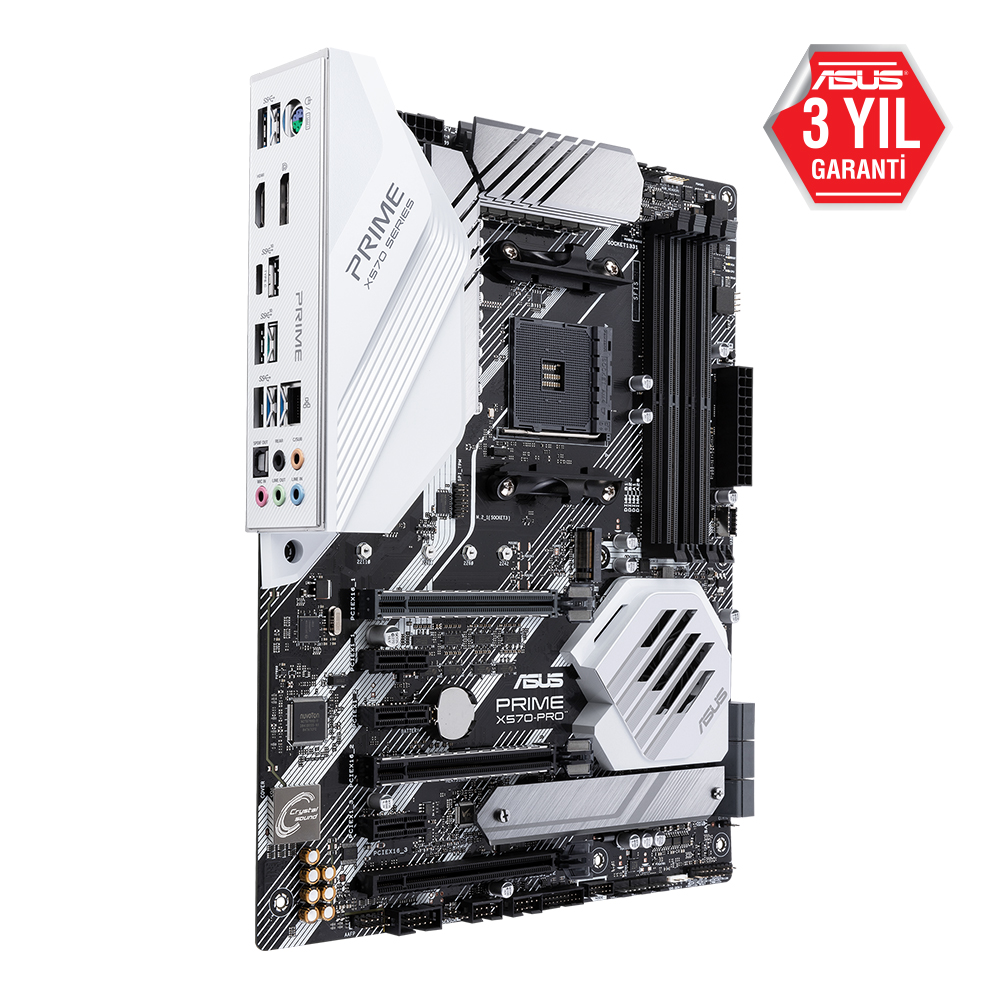

ASUS Prime X570-PRO
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD X570 |
BELLEK ÖZELLİKLERİ: |
4 x DIMM, Max. 128GB, DDR4 MHz Arabelleksiz Bellek |
3rd Gen AMD Ryzen? Processors |
Çift Kanal Bellek Mimarisi |
2nd Gen AMD Ryzen? Processors |
4 x DIMM, Max. 128GB, DDR4 MHz Arabelleksiz Bellek |
2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors |
4 x DIMM, Max. 128GB, DDR4 MHz Arabelleksiz Bellek |
ECC Bellek (ECC modu) desteği CPUya göre değişir. |
* QVL Listesi için www.asus.com.trı ziyaret ediniz. |
* The maximum memory capacity supported vary depending on the CPU you installed. |
ONBOARD VGA: |
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors |
Çoklu VGA çıkış desteği : HDMI/DisplayPort ports |
- HDMI 2.0b ile Desteklenen Maks. Çözünürlük 4096 x 2160 @ 60 Hz |
- DisplayPort 1.2 ile Desteklenen Maks. Çözünürlük 4096 x 2160 @ 60 Hz |
GENİŞLETME SLOTLARI: |
3rd Gen AMD Ryzen? Processors |
2 x PCIe 4.0 x16 (x16 veya çiftli x8) |
2nd Gen AMD Ryzen? Processors |
2 x PCIe 3.0 x16 (x16 veya çiftli x8) |
2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors |
1 x PCIe 3.0 x16 (x8 modu) |
AMD X570 chipset |
1 x PCIe 4.0 x16 (maks x4 modu) |
3 x PCIe 4.0 x1 |
Multi-GPU Support: |
3rd and 2nd Gen AMD Ryzen? Processors |
NVIDIA® 2-Yönlü SLI? Teknolojisini destekler |
AMD 3-Yönlü CrossFireX? Teknolojisini Destekler |
2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors |
Supports AMD 2-Way CrossFireX? Technology |
DEPOLAMA: |
3rd Gen AMD Ryzen? Processors : |
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
2nd Gen AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : |
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
AMD X570 chipset : |
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
6 x SATA 6Gb/s port(lar) |
Raid Desteği 0, 1, 10 |
SES: |
Realtek® S1220A 8-Kanal Yüksek Tanımlı Ses CODECi Crystal Sound 3 |
LAN: |
Intel® I211-AT |
ASUS LAN Guard |
USB: |
3rd and 2nd Gen AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : |
4 x USB 3.2 Gen 1 port(lar) (4arka panelde, Mavi, Tip A) |
AMD X570 chipset : |
1 x USB 3.2 Gen 2 front panel connector port(lar) |
AMD X570 chipset : |
4 x USB 3.2 Gen 2 port(lar) (4arka panelde, Turkuaz Mavisi, 3 x Tip A+1 x Tip C) |
AMD X570 chipset : |
2 x USB 3.2 Gen 1 port(lar) (2 bord ortasında) |
AMD X570 chipset : |
4 x USB 2.0 port(lar) (4 bord ortasında) |
Form Factor: |
ATX Form Faktör |
12.0 inç x 9.6 inç ( 30.5 cm x 24.4 cm ) |
Garanti: 36 Ay |
