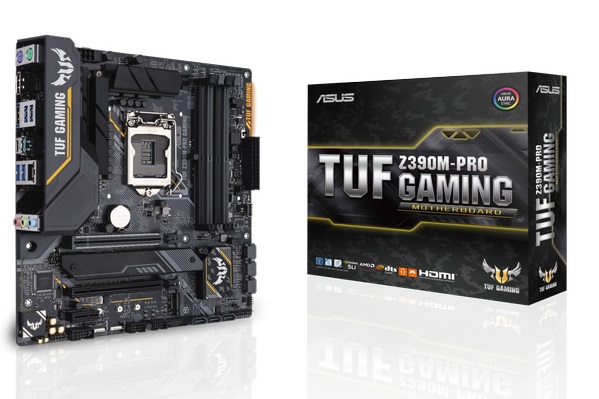

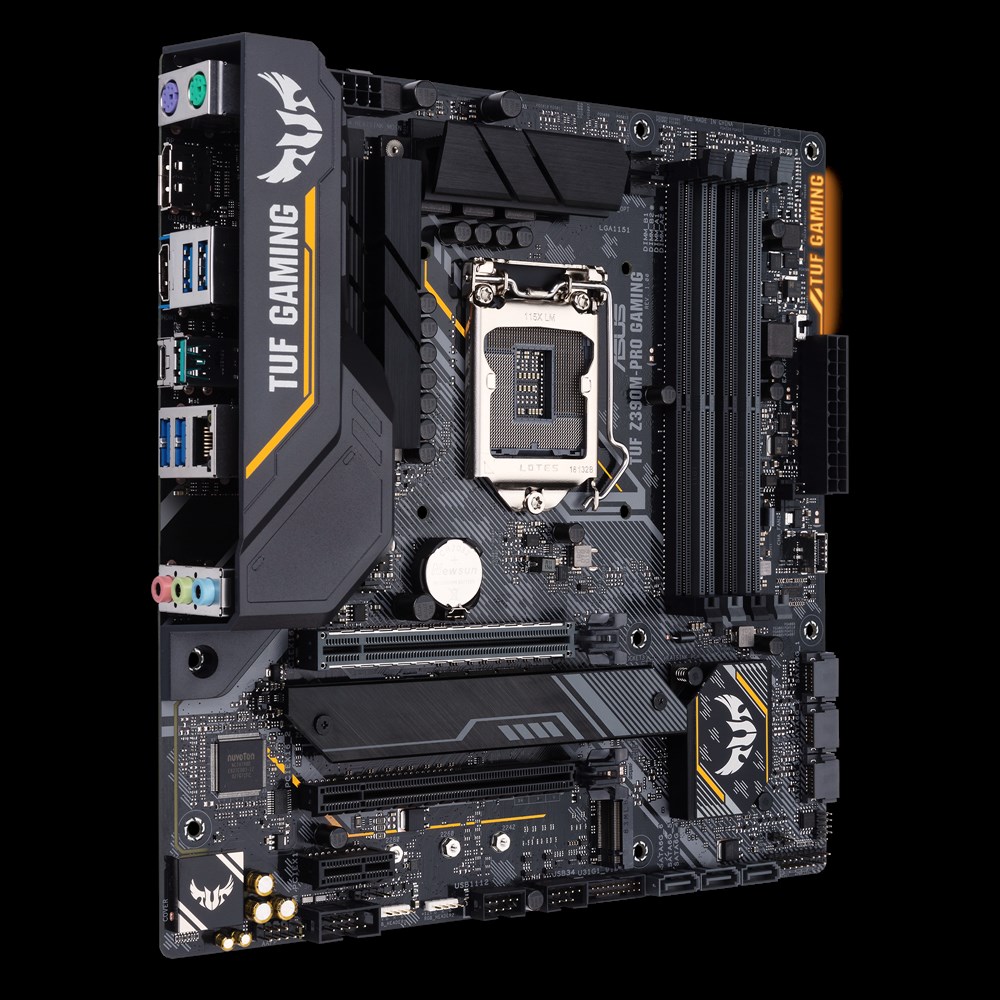

ASUS TUF Z390M-PRO GAMING
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: INTEL Z390 |
BELLEK: |
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1 |
Dual Channel Memory Architecture |
Supports Intel® Extreme Memory Profile (XMP) |
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
* The maximum memory frequency supported varies by processor. |
GRAFİK: |
Integrated Graphics Processor- Intel® UHD Graphics support |
Multi-VGA output support : HDMI/DisplayPort ports |
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz |
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz |
Supports Intel® InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider? |
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
ÇOKLU EKRAN KARTI DESTEĞi: |
Supports NVIDIA® SLI? Technology |
Supports AMD CrossFireX? Technology |
GENİŞLETME SLOTLARI: |
2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *2 |
1 x PCIe 3.0 x1 |
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings. |
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
DEPOLAMA: |
Intel® Z390 Chipset : |
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 |
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
6 x SATA 6Gb/s port(s), gray, *3 |
Support Raid 0, 1, 5, 10 |
Intel® Rapid Storage Technology supports |
Intel® Optane? Memory Ready |
Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) |
LAN: |
Intel® I219V, featuring Turbo LAN |
TUF LANGuard |
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
SES: |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC |
USB: |
Intel® Z390 Chipset : |
2 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, 1 at mid-board) |
Intel® Z390 Chipset : |
7 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 1 x Type-C, 2 at mid-board) |
Intel® Z390 Chipset : |
4 x USB 2.0/1.1 port(s) (4 at mid-board) |
ARKA PANEL: |
1 x PS/2 keyboard (purple) |
1 x PS/2 mouse (green) |
1 x DisplayPort |
1 x HDMI |
1 x LAN (RJ45) port(s) |
1 x USB 3.1 Gen 2 Type-A, |
4 x USB 3.1 Gen 1 (blue) Type-A, |
1 x USB 3.1 Gen 1 (black) Type-C, |
3 x 8-channel Audio I/O |
BOYUTLAR: |
mATX Form Factor |
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Garanti: 36 Ay Asus Yetkili Servisinde |
